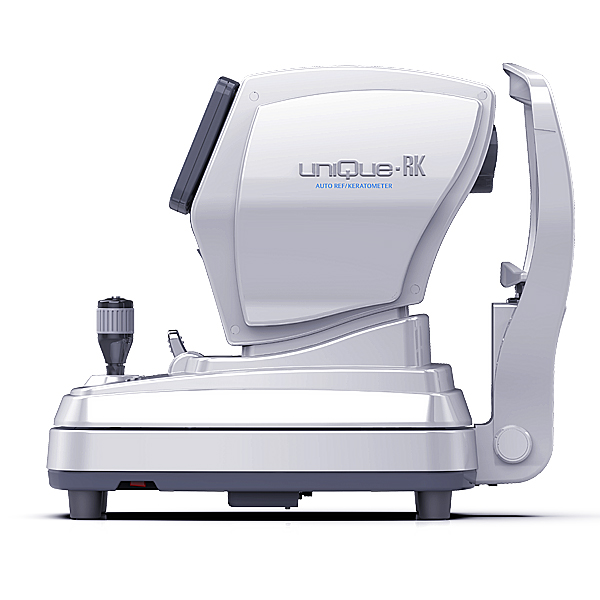

UNICOS URK-800F Otorefkeratometre
UNICOS URK-800F Otorefkeratometre
| K/R Mode | Successive Refractometry & Keratometry |
|---|---|
| Ref. Mode | Refractometry |
| Ker. Mode | Keratometry |
| CLBC Mode | Contact lens base curve measurement |
| Vertex Distance (D) | 0, 10, 12, 13.5, 15 mm |
|---|---|
| Sphere(SPH) | – 25.00 ~ + 22.00 D (0.12, 0.25 D) |
| Cylinder(CYL) | 0.00 ~ +/- 10.00 D(0.12, 0.25D) |
| Axis | 1 ~ 180° |
| Cylinder Form | -, +, +/- |
| Pupil Distance | 10 ~ 85 mm |
| Min. Pupil Dia. | ø 2.0 mm |
| Radius of Curvature | 5.0 ~ 10.2 mm |
|---|---|
| Corneal Power | 33.00 ~ 67.50 D |
| Corneal Astigmatism | 0.00~-15.00D Unit : 0.12/ 0.25 D |
| Axis | 1 ~ 180° |
| Corneal Dia. | 2.0 ~ 12.0 mm |
| Internal Printe | Thermal Printer |
|---|---|
| Display | 7.0 inch TFT COLOR LCD Monitor, Touch |
| Power Supply | AC100V ~ 240V, 50/60Hz 60 – 90VA |
| Dim./Weight | 275mm(W) x 525mm(D) x 450mm(H) / 18kg |
| Chinrest Mov. | Max. 65 mm |
| Data Output | RS-232 Interface, Video Output |
