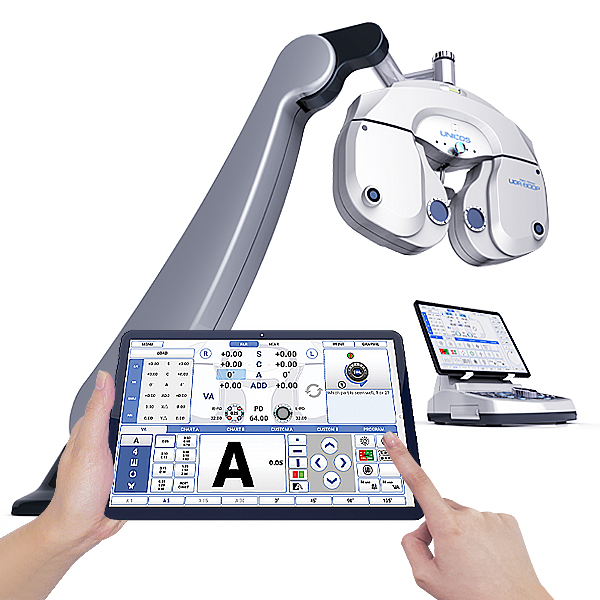

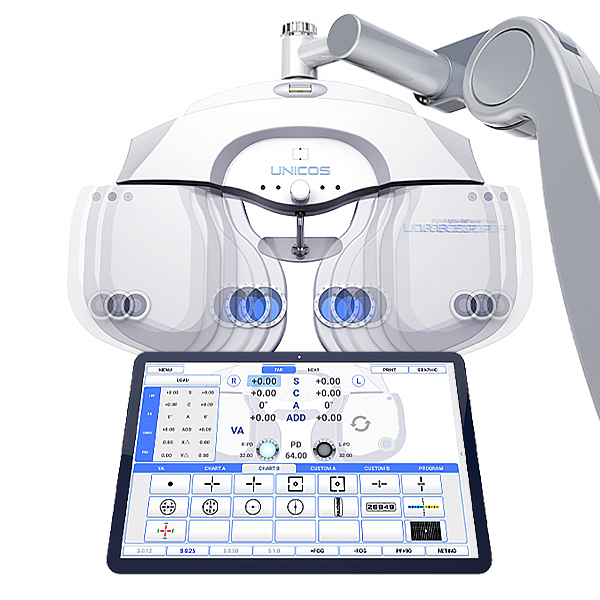

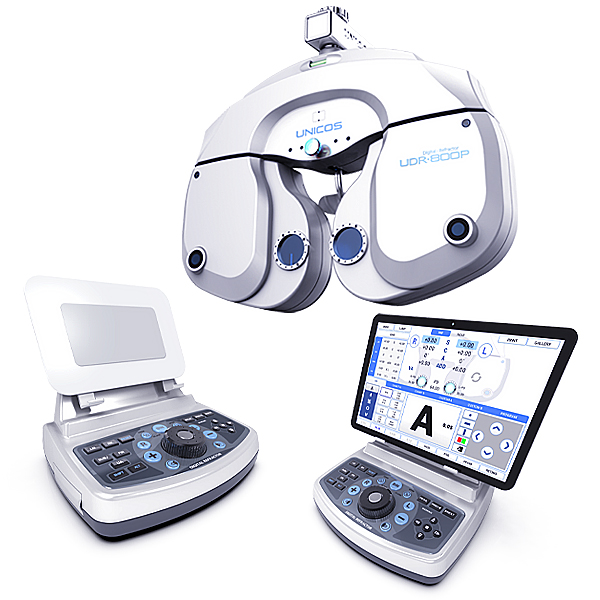

UNICOS UDR-800P Tam Otomatik Foropter
UNICOS UDR-800P Tam Otomatik Foropter
| Spherical Lens | -29.00 ~ +26.75D (Regular) -19.00 ~ +16.75D(Cross Cylinder, Prism Test) (Step: 0.12D / 0.25D / 0.5D / 1D / 2D / 3D) |
|---|---|
| Cylinder Lens | 0.00 ~ 8.75 D (Step: 0.25/0.5/1/2/3 D) |
| Cylinder Axis | 1 ~ 180° (Step: 1/5/15/30/45°) |
| Pupil Distance | Far:48 ~ 80mm/Near:45 ~ 75mm(Step:0.5/1.0mm) |
| Working Distance | 35 ~ 70 cm (step: 5cm) |
| Rotary Prism | 0 ~ 20 ∆ (step: 0.1/0.2/0.5/1/2∆) |
| Cross Cylinder | Jackson Cross Cylinder +/- 0.25D Jackson Cross Cylinder +/- 0.50D Dual Cross Cylinder |
| Retinoscopy Lens | +1.5D, +2.0D (Test Distance 67, 50 cm) |
| Power Supply | AC 100 – 240V~, 50 / 60Hz 115VA |
| Pin Hole Lens | ø 1.0 mm |
|---|---|
| Maddox Rod | Right eye (Horizontal red), Left eye (Vertical red) |
| Red/Green Filter | Right eye (Red), Left eye (Green) |
| Polarized Light Filter | Right eye (135, 45°), Left eye (45, 135°) |
| Separating Prism | Right eye (6 ∆BU), Left eye(10 ∆BI added to 0~5 ∆) |
| Fixed Cross Cyl. Lens | Jackson Cross Cylinder +/-0.50D, Axis fixation 90° |
| Vision Degrees | 32° |
Açıklama
Ürün hakkında detay bilgiye ulaşmak için üretici firma logosunu tıklayınız.
